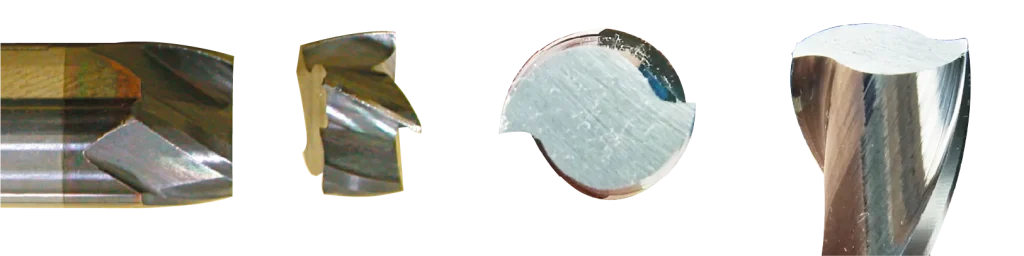

End mill after cutting
Cutting time (approximate)
Approx. 30 seconds to 1 minute with a ø10 carbide end mill.
※Cutting time may be longer depending on the air flow rate.

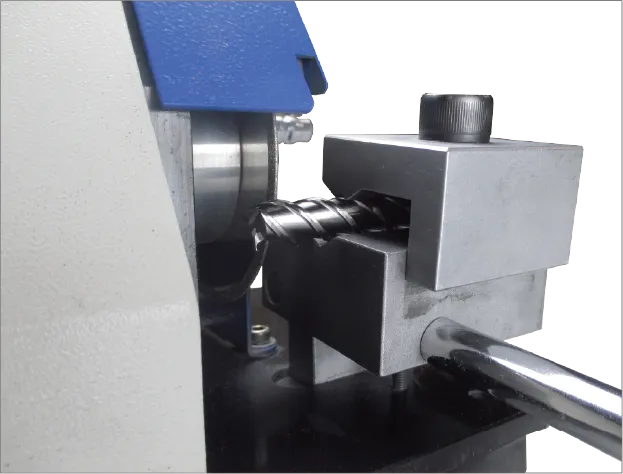

Enlarged view of the clamping section
Place the workpiece into the clamping area shown in the photo, and tighten it with the bolt.

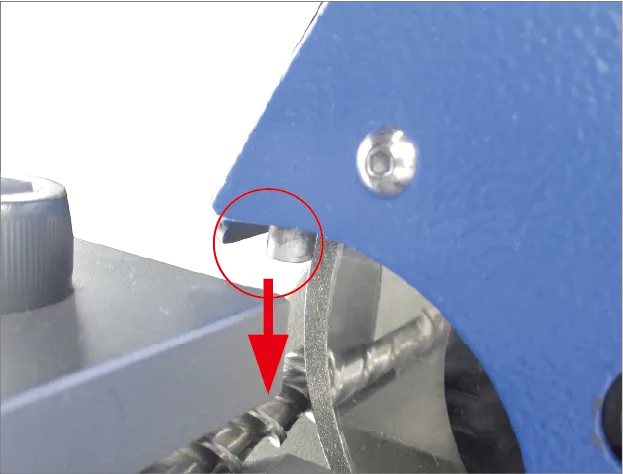

Enlarged view of air or cooling water discharge outlet
Compressed air or cooling water is discharged from the circled area toward the cutting wheel.

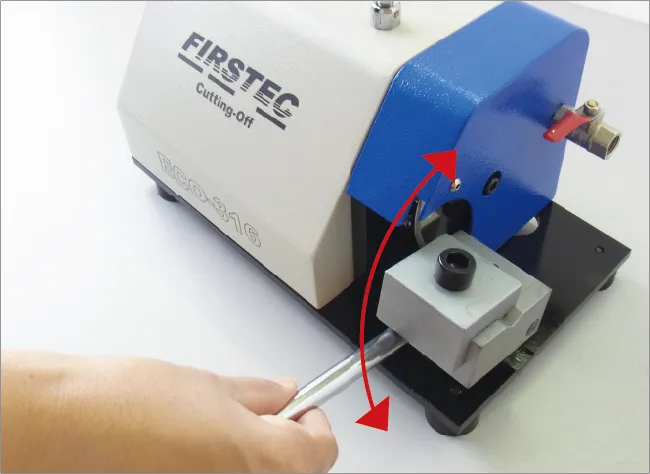

How to use
After clamping the workpiece, open the air cock (oil valve) to discharge compressed air (cooling water) from the nozzle. Then, turn on the motor switch and lift the handle to cut the workpiece.
